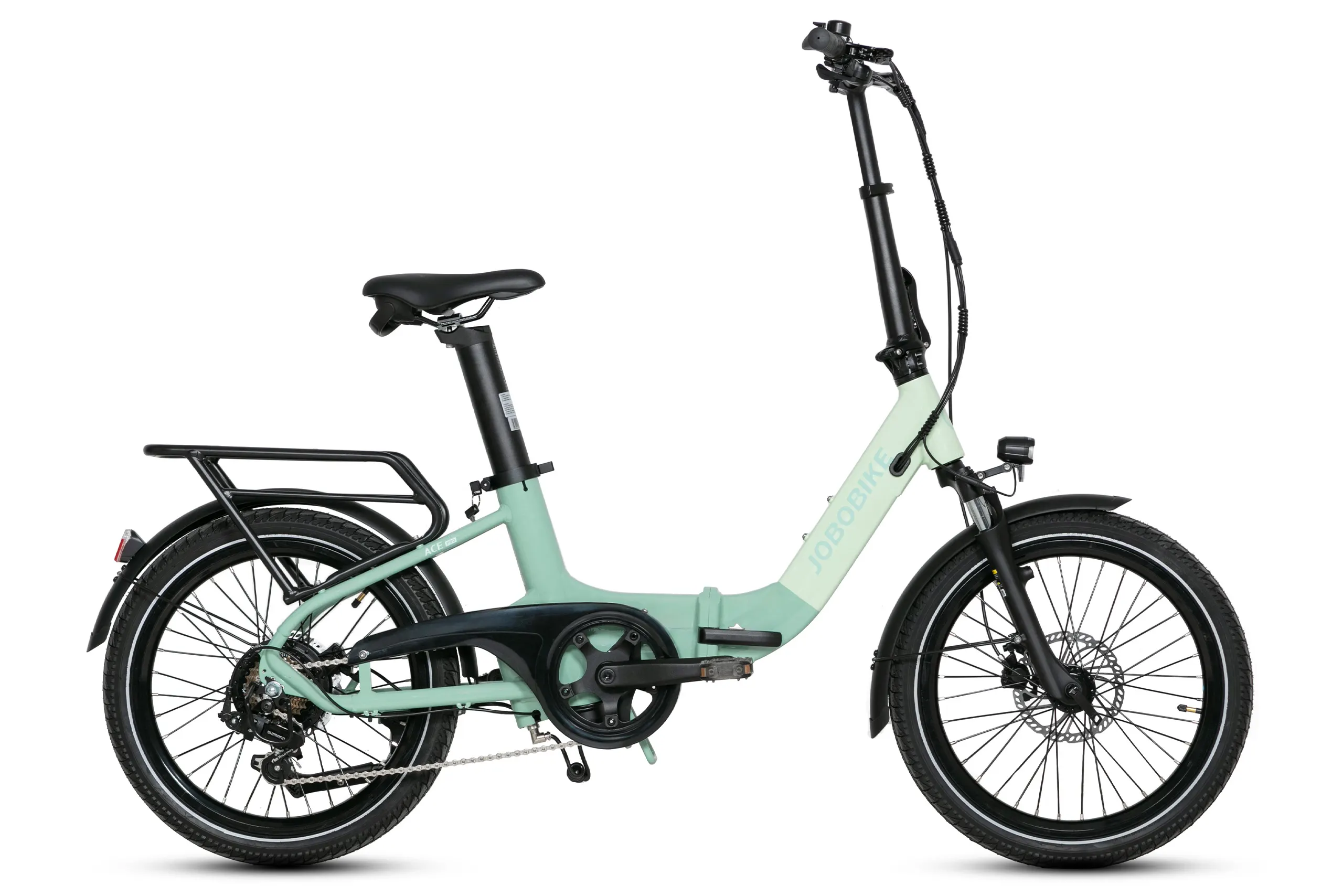

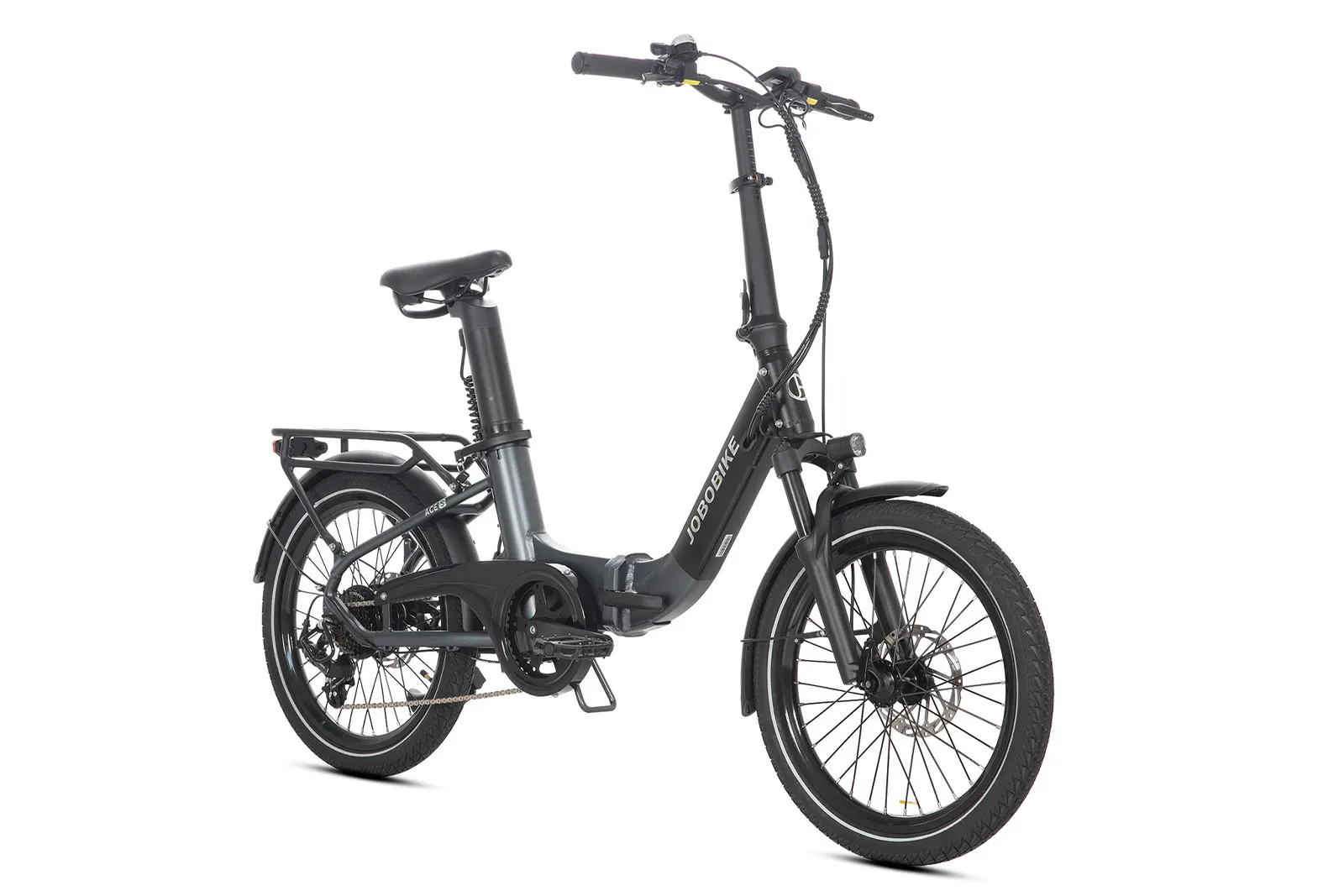

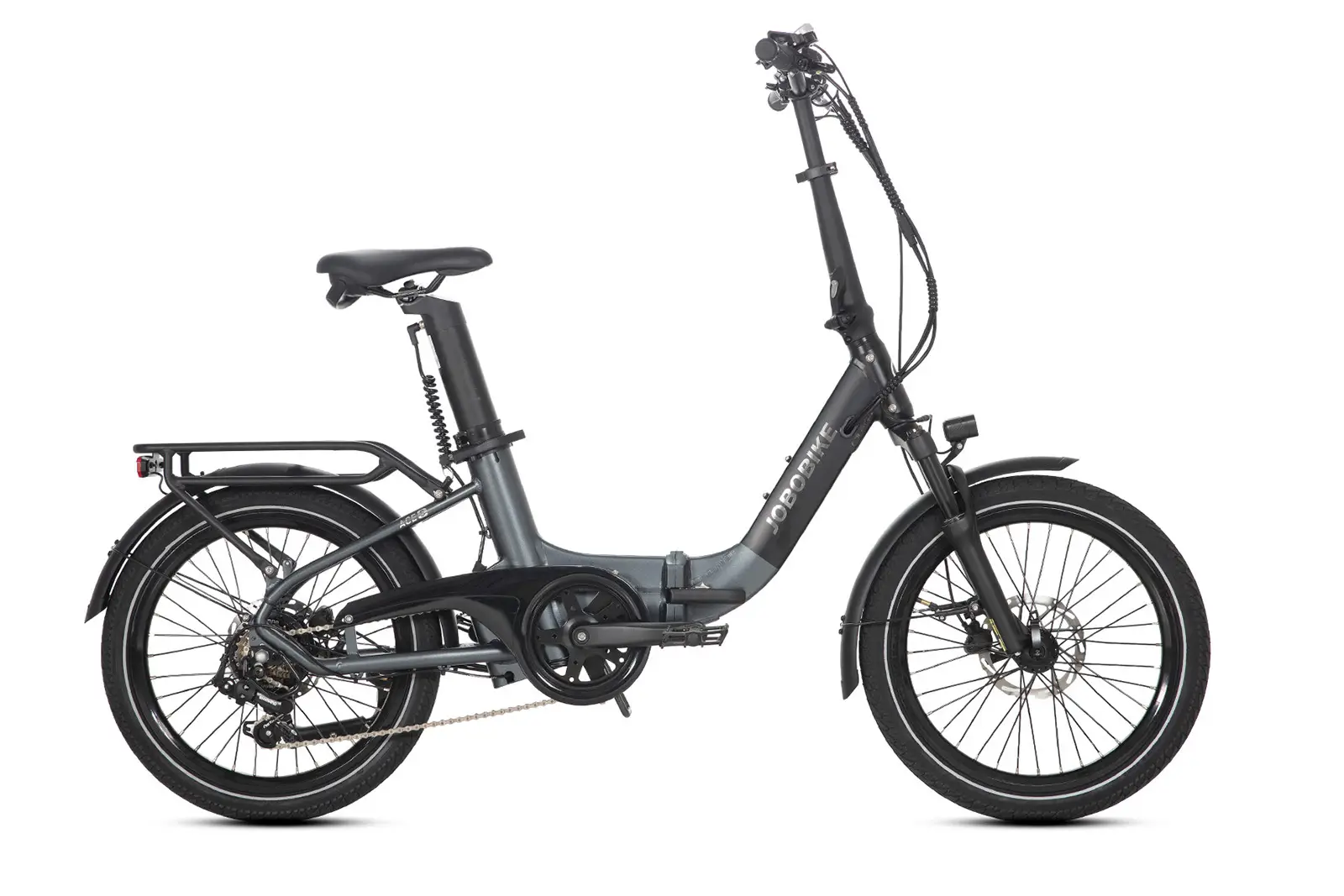

JOBOBIKE Ace
Lightweight Foldable E-bike
Jobobike Ace is a new saddle-tube battery electric bicycle designed for urban cyclists. It is equipped with a Bluetooth connection function to monitor riding status anytime and anywhere.
（Recommend）
€1399
Ace/Ace S: 80KMAce Pro: 120KM
Ace/Ace S: 36V 10Ah LGAce Pro: 36V 15Ah LG
Ace: Tektro Mechanical Disc BrakeAce S/Ace Pro: Tektro hydraulic Disc Brake
36V 250WMax. 45 N · m

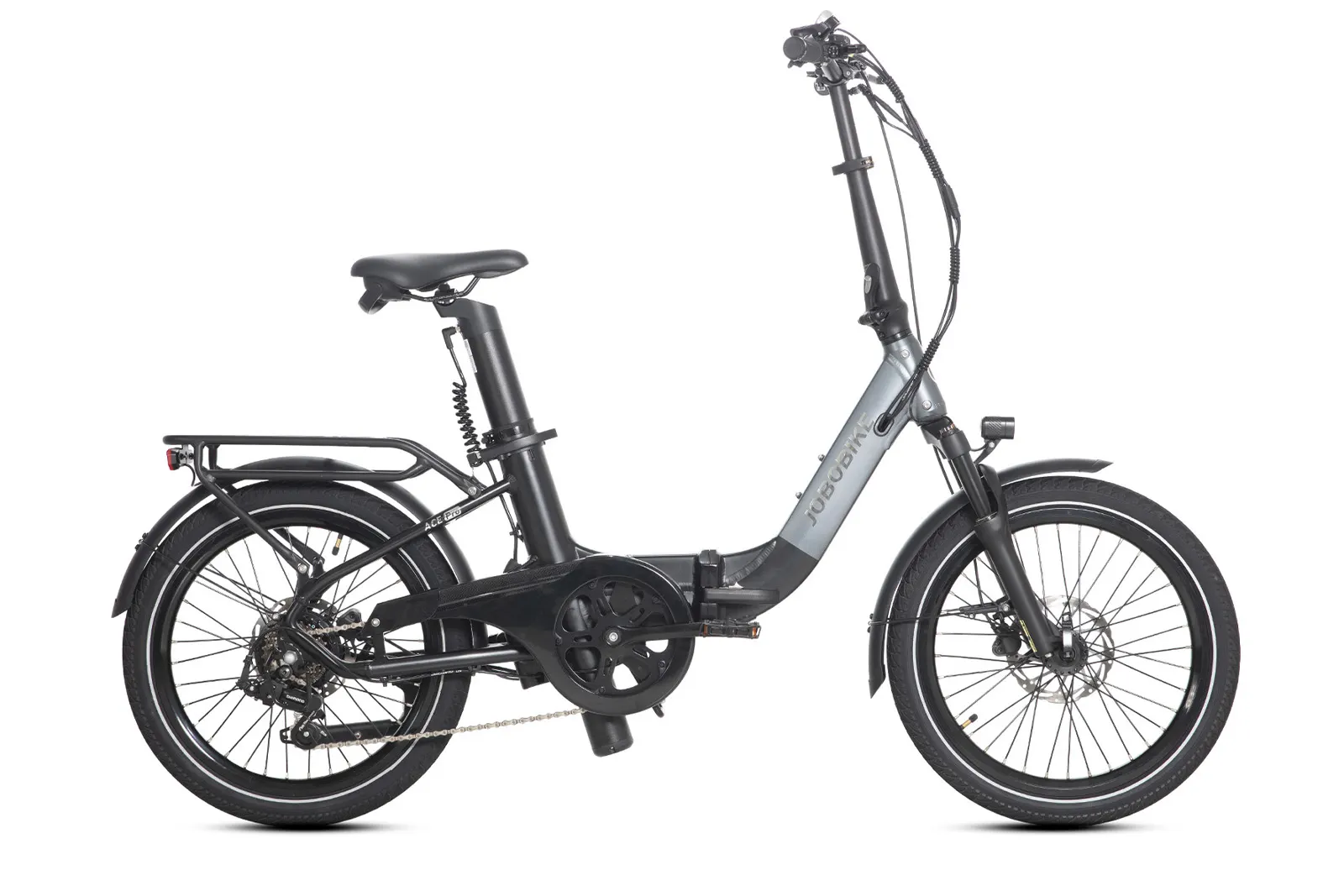

JOBOBIKE Ace

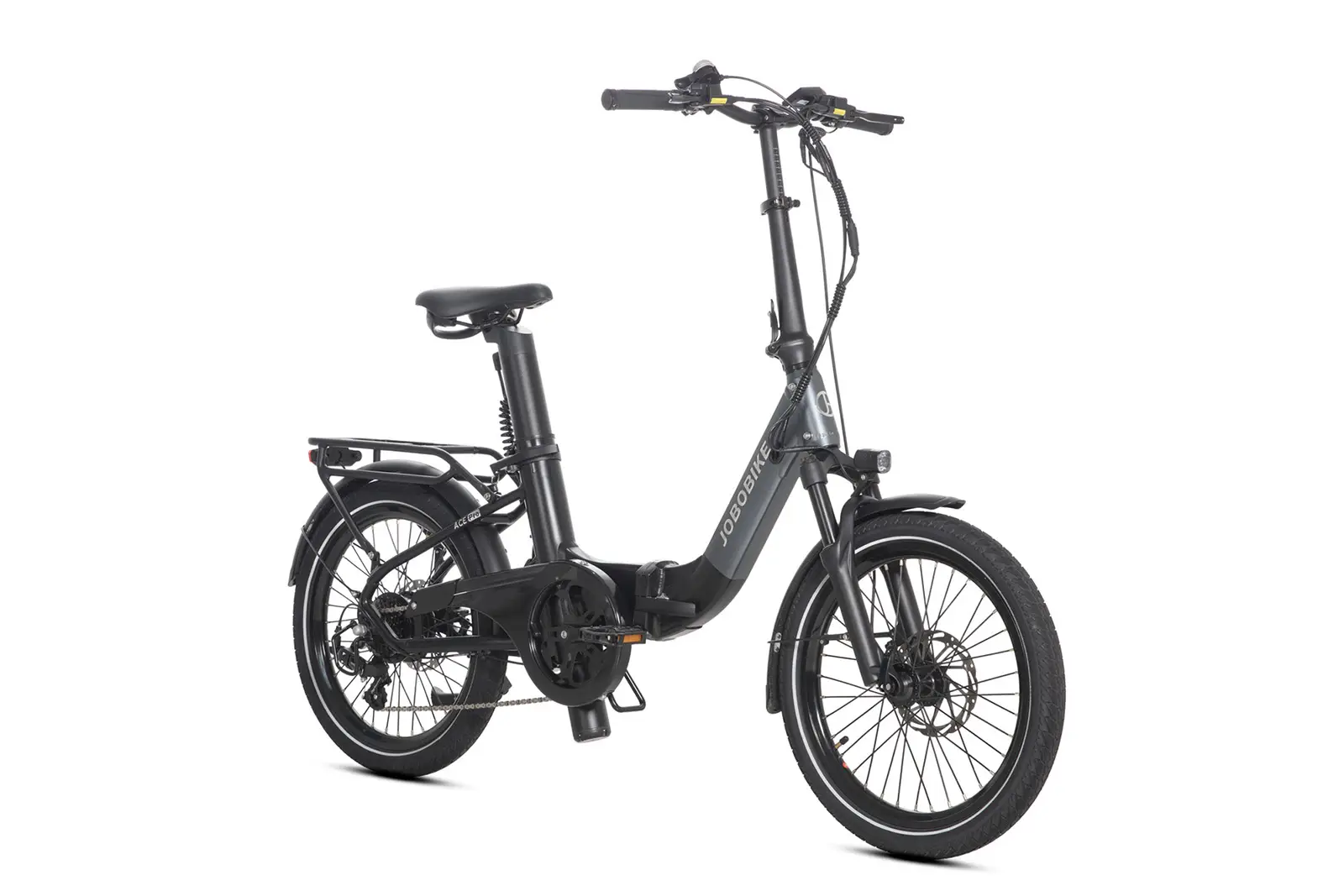

Ace and Ace Pro feature a foldable design for easy carrying and storage, making them ideal for commuters. The Ace series offers an exceptional riding experience with its superior functionality and stylish design. Equipped with hydraulic disc brakes and torque sensor, Ace Pro is an upgraded model tailored for riders seeking higher performance.

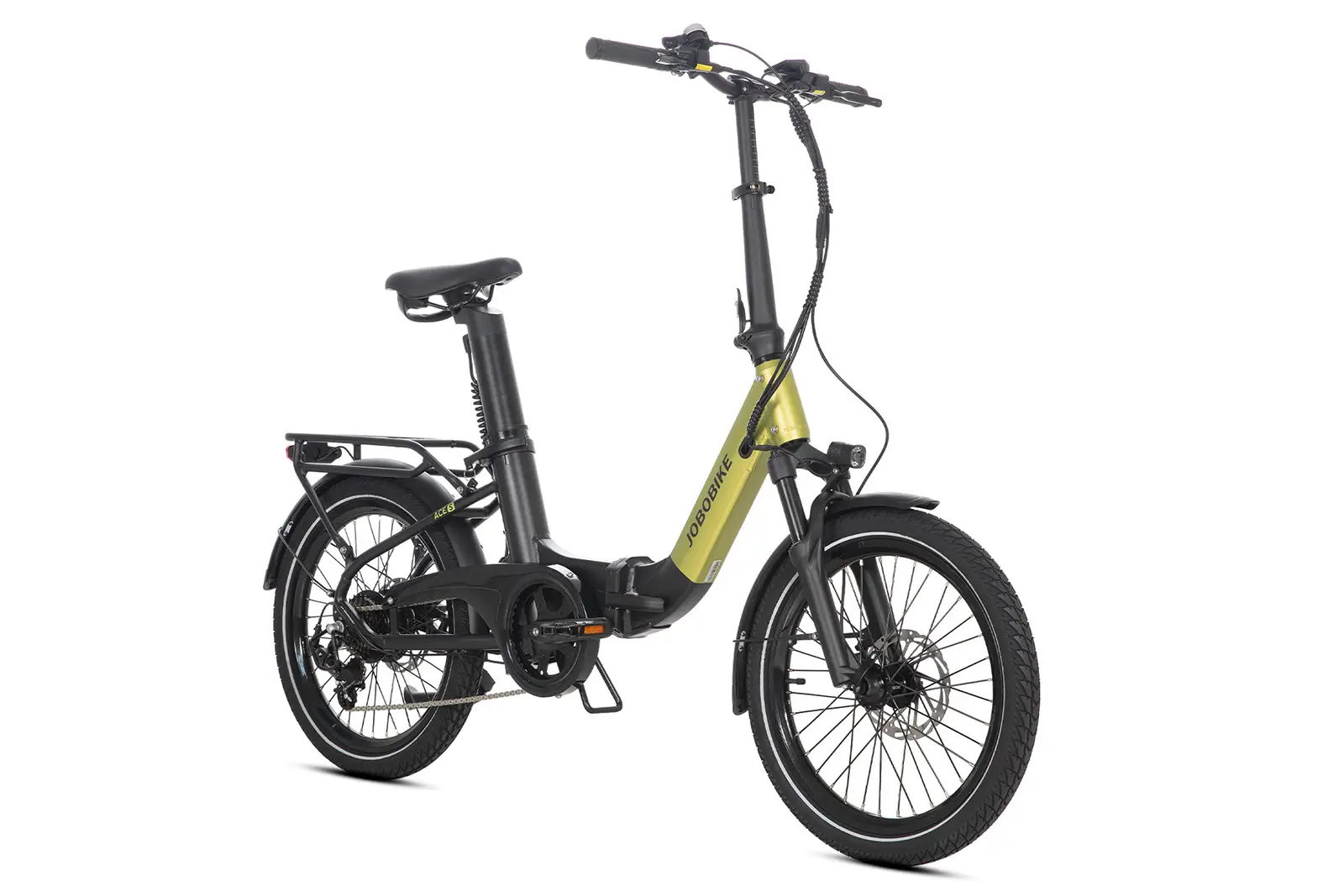

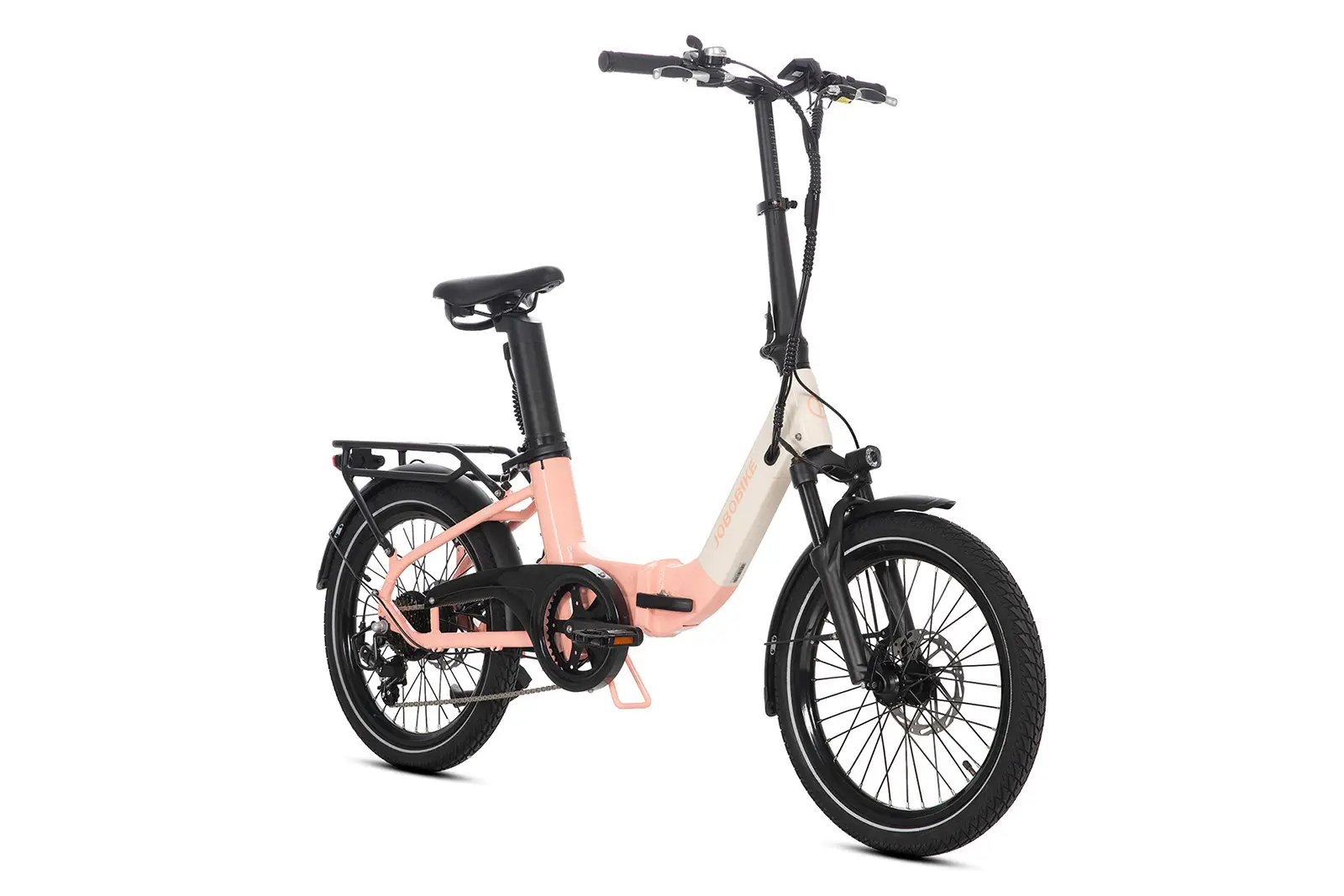

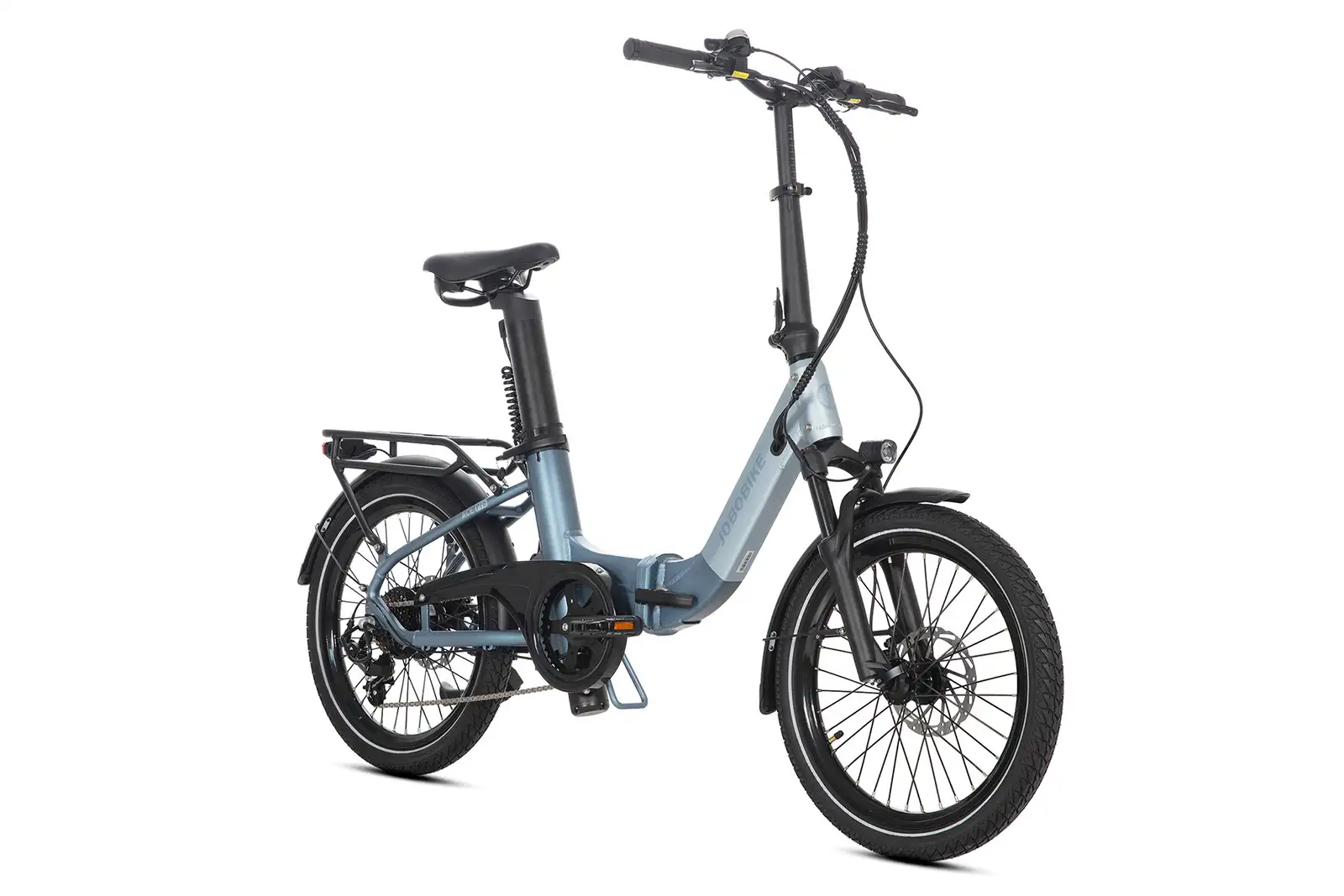

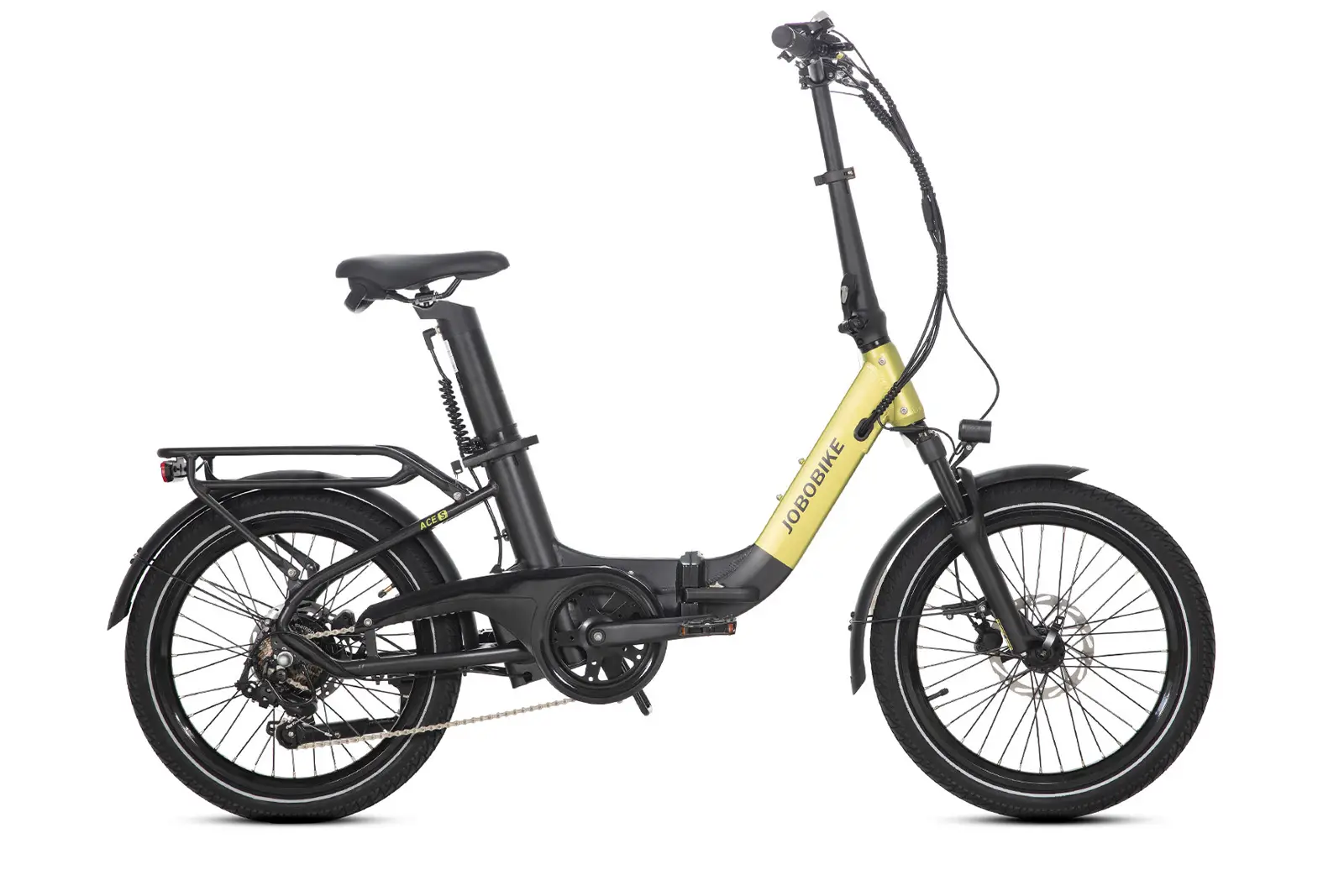

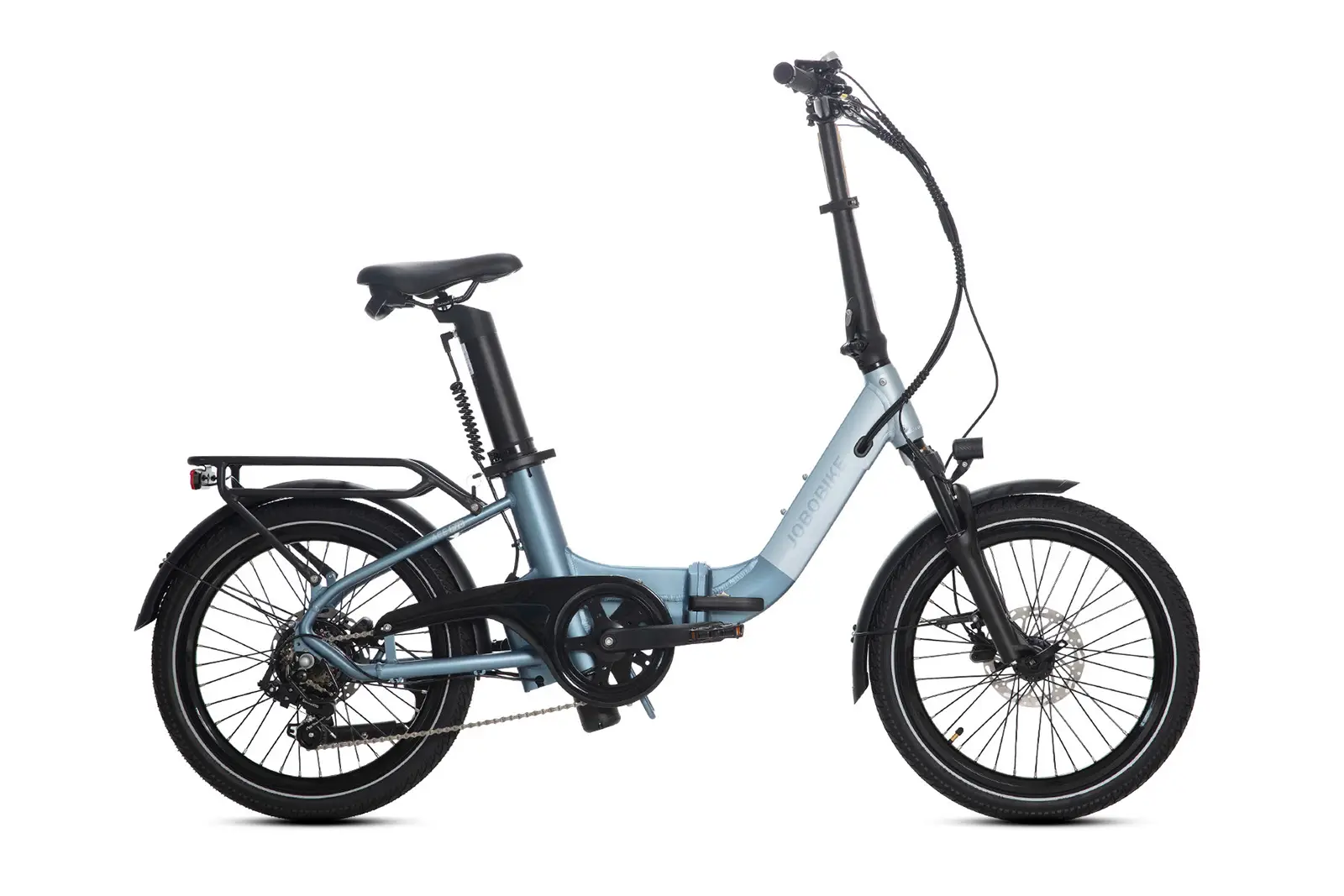

Colorful Design
The JOBOBIKE Ace-series is available in 5 stylish color options. Choose your mood for your stylish riding!
Built-in Battery
The seat tube battery centralizes weight for better balance and stability, especially on uneven terrain or at higher speeds. Seamlessly integrated into the frame, it keeps the bike sleek and streamlined.

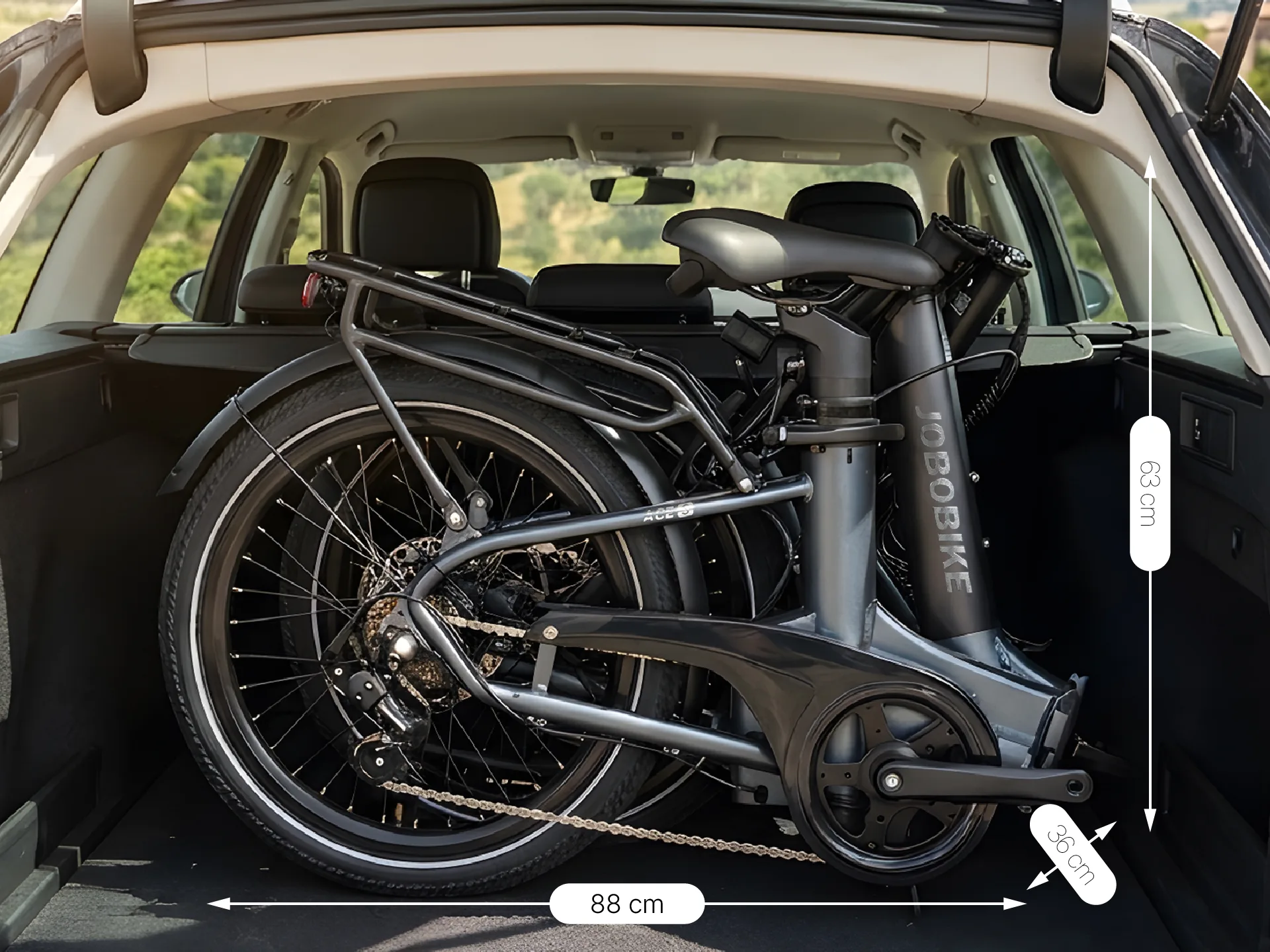

Foldable Frame Design
Folding e-bikes save space and are easy to store at home, in the office, or on the go. Fold them up for convenient transport by bus, subway, or in your car.
DETAILS

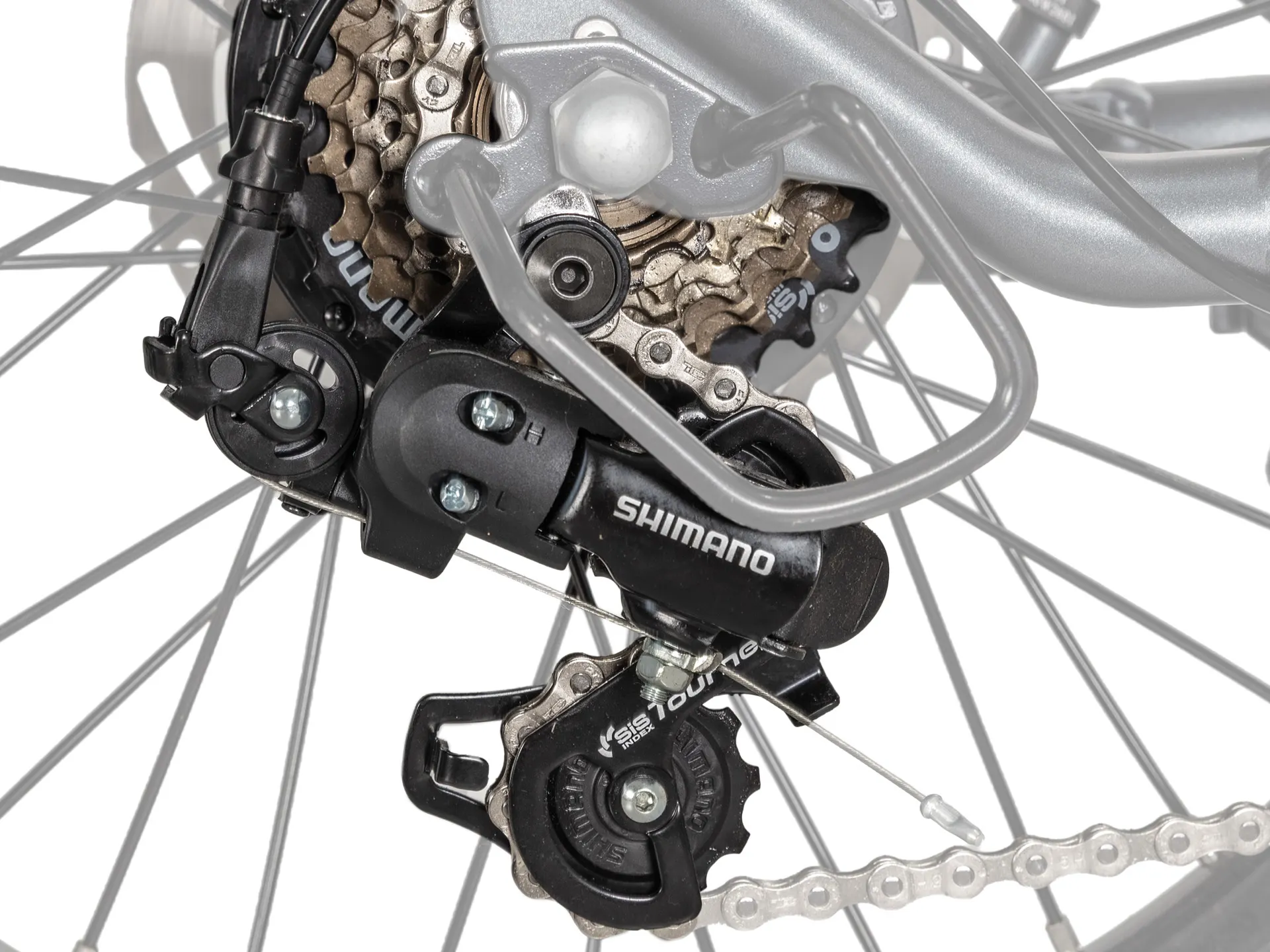

7-speed Derailleur
The 7-gear allows the Ace series to flexibly adapt to different road conditions to ensure a smooth and comfortable ride.

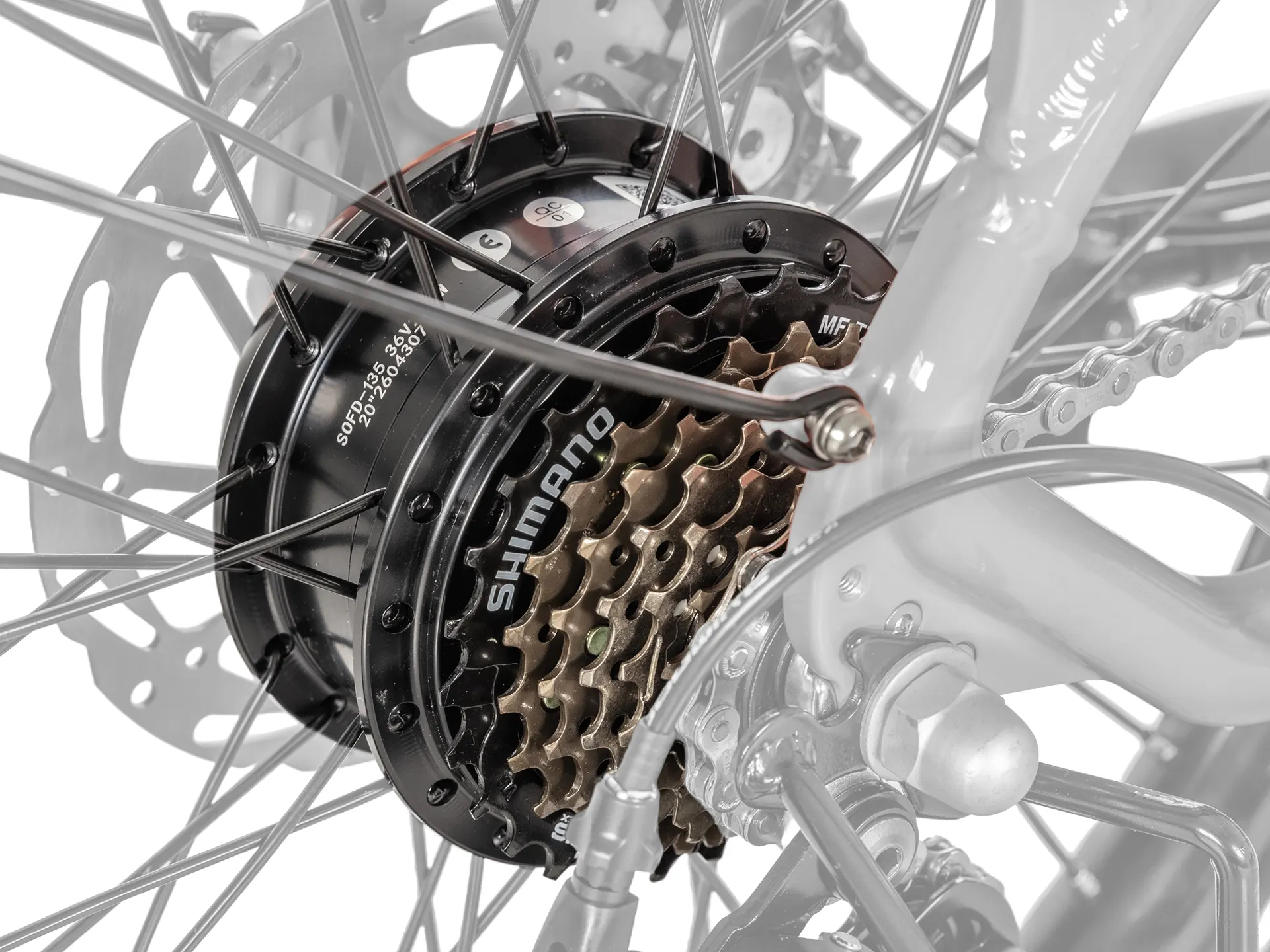

250W Motor
The brushless 250W motor with 45 N.m torque in the rear wheel hub is perfect for use in the city.

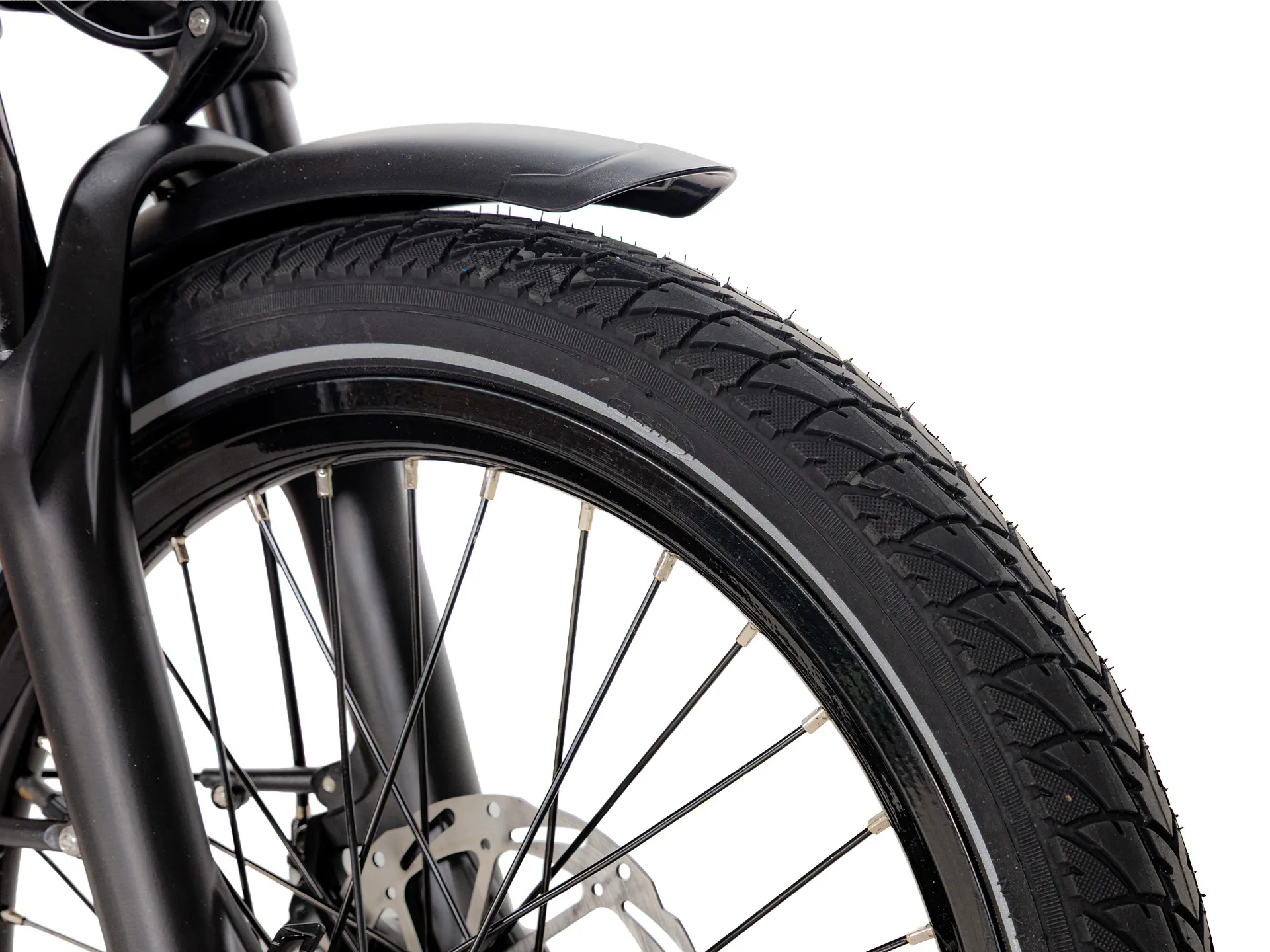

CST Tires
CST 20”x2.125” tires are equipped with anti-puncture and reflective strips to further improve the durability of the tires and the safety of night riding.

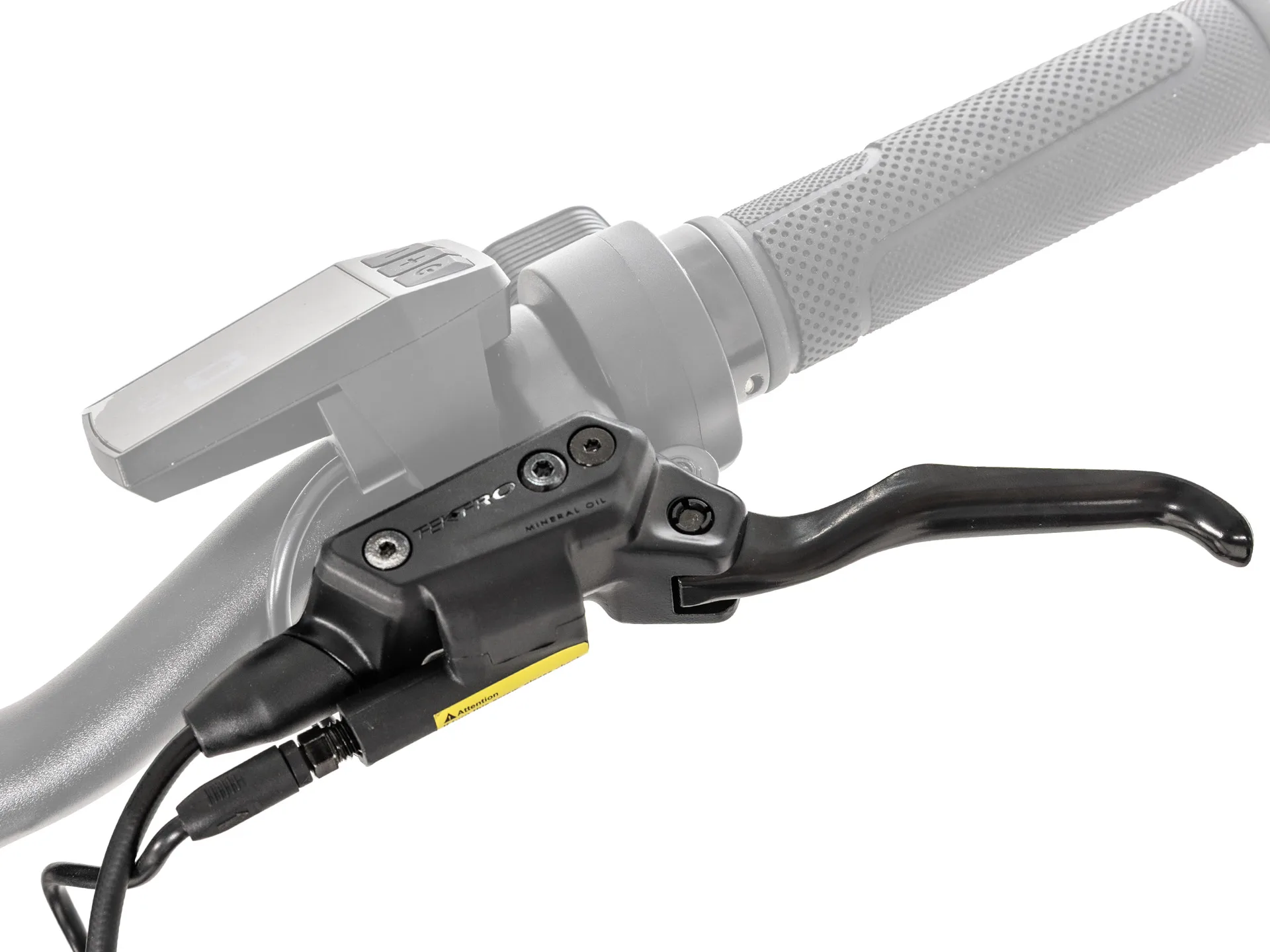

Reliable Tektro Disc Brakes
The Ace series features either mechanical or hydraulic Tektro disc brakes, depending on the model, delivering reliable stopping power and confident control for everyday riding.

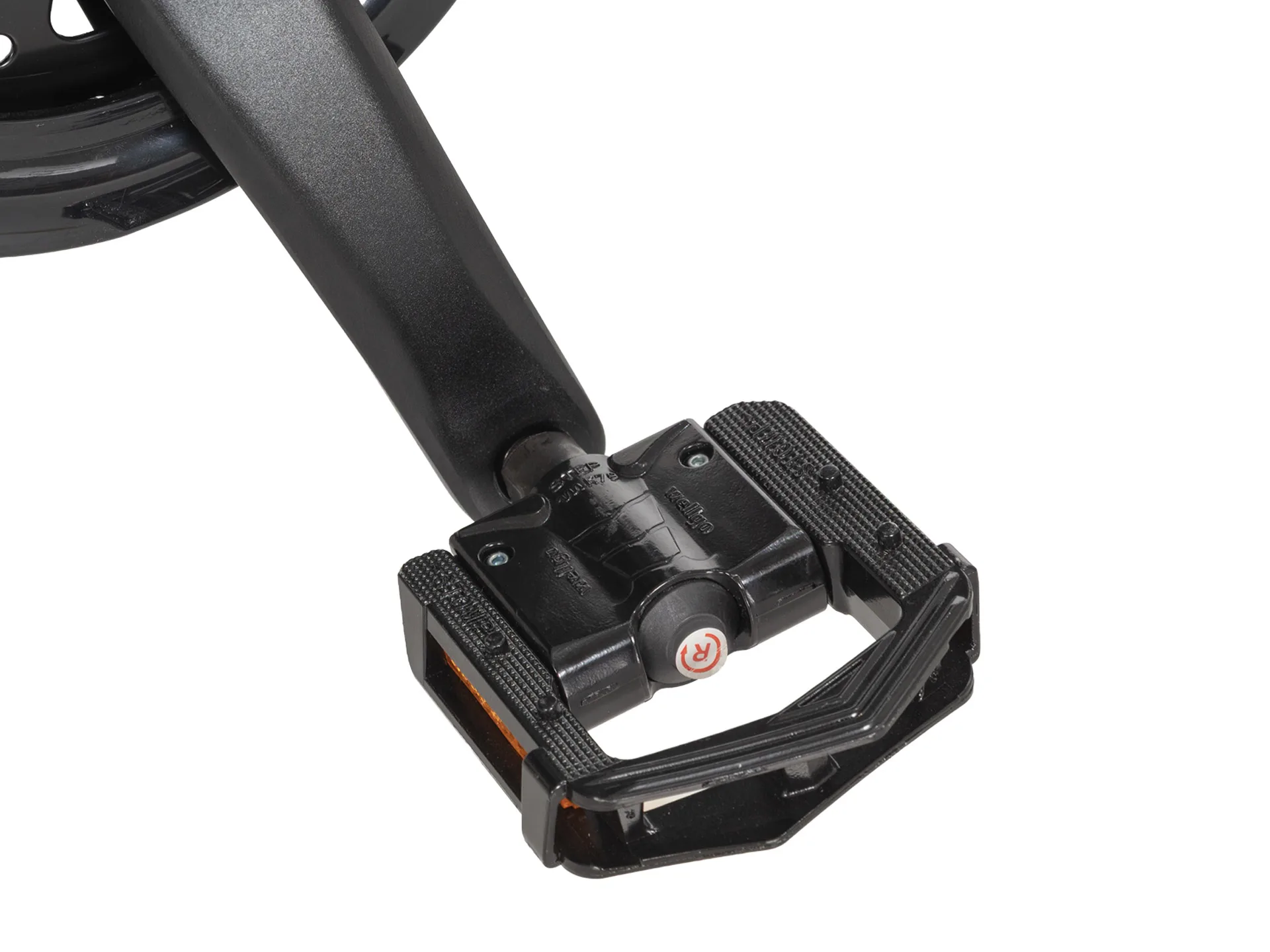

Foldable Pedals
Strong, rust-resistant and foldable pedals ensure durability and comfort. With the 3-level pedal assistance, you can reach your destination quickly and with less effort.

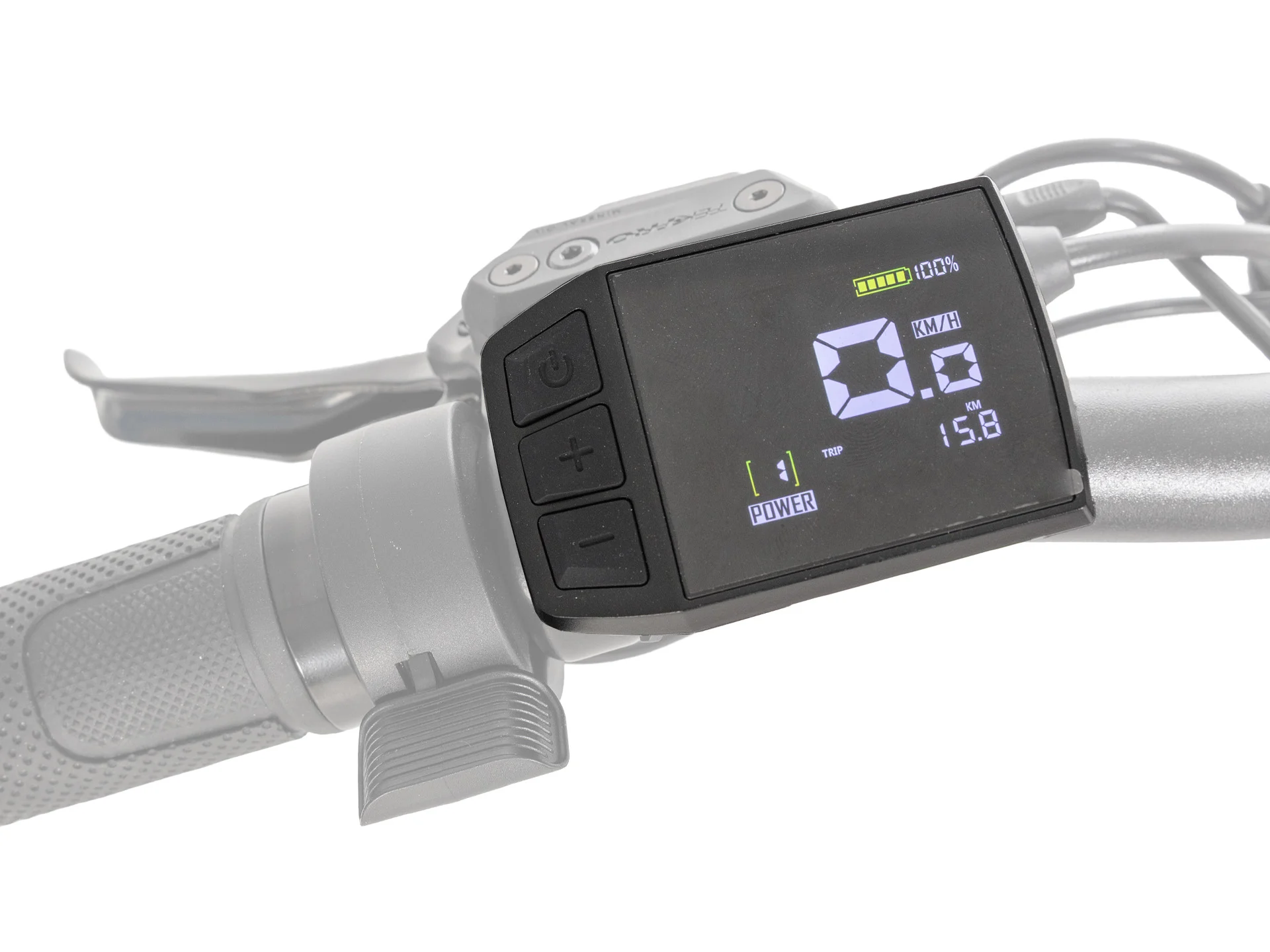

LCD Display with Bluetooth
The high-contrast electric LCD display provides a clear view of all types of information, and with bluetooth function, bring riders an amazing experience.

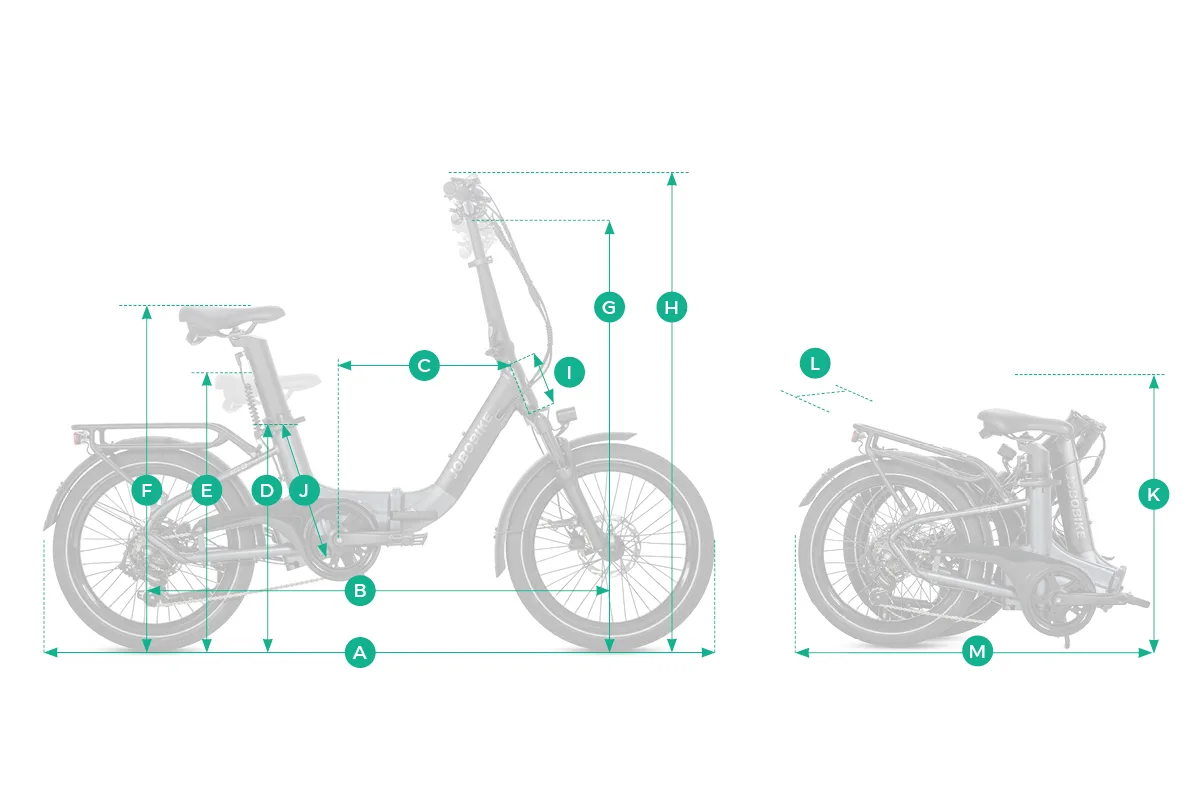

- Rider heights 150 cm -180 cm
- A-Total Length 1635 mm
- B-Wheelbase 1115 mm
- C-Reach 426 mm
- D-Stand over Height 566 mm
- E-Minimum Saddle Height 720 mm
- F-Maximum Saddle Height 860 mm
- G-Minimum Handlebar Height 1050 mm
- H-Maximum Handlebar Height 1200 mm
- I-Head Tube 125 mm
- J-Seat Tube 350 mm
- K-Height after folding 630 mm
- L-Width after folding 360 mm
- M-Overall length after folding 880 mm
SPECIFICATION
- Battery
- Ace/Ace S: 36V 10Ah LG; Ace Pro: 36V 15Ah LG
- Motor
- 36V250W Rear Motor, Max.45N.m
- Display
- LCD display with bluetooth function
- Pedal Assist
- Intelligent 3-level pedal assist
- Sensor
- Ace/Ace S: Speed sensor; Ace Pro: Torque sensor
- Charger
- 36V 2.0A
- Front Light
- LED
- Rear Light
- Tail light
- Frame
- 6061 Aluminum Alloy
- Brakes
- Ace: Tektro Mechanical Disc Brake; Ace S/Ace Pro: Tektro hydraulic Disc Brake
- Derailleur
- Shimano 7-speed
- Suspension
- Zoom Suspension Fork
- Handlebar
- City type, 600mm
- Kickstand
- Single-leg aluminum alloy
- Pedals
- Foldable pedals
- Saddle
- Comfort Seat
- Seatpost
- With battery
- Fenders
- PVC front and rear, full coverage
- Chain
- KMC
- Tires
- CST 20"*2.125"
- Range
- Ace/Ace S: 80KM Range (1-level mode) 50KM Range (Max-level mode); Ace Pro: 120KM Range (1-level mode) 80KM Range (Max-level mode)
- Recommended Height
- Above 155cm
- Load Capacity
- 120KG
- Bike Weight
- Ace/Ace S: 22KG; Ace Pro: 24KG
- Shipping Weight
- Ace/Ace S: 26KG; Ace Pro: 28KG
- Carton Size
- 86*46*72cm
- Type
- City foldable e-bike
