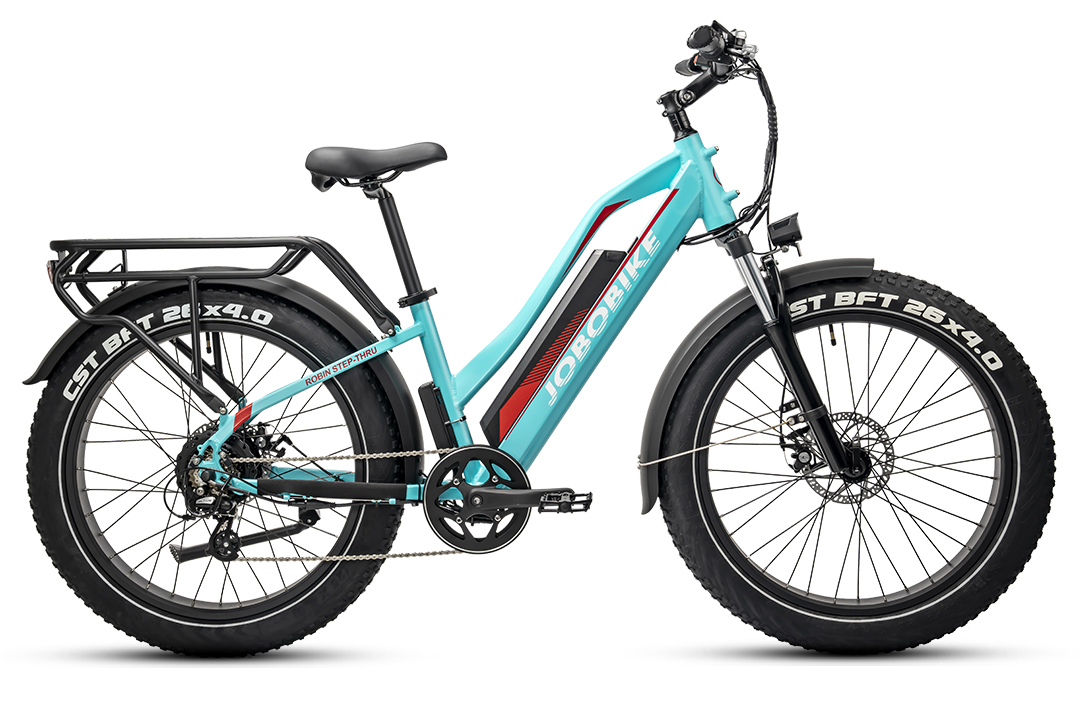

JOBOBIKE Robin ST

Step-thru Electric Fatbike
The Fatbike Robin Step-thru is JOBOBIKE's most powerful and dynamic e-bike. We offer two types of frames: high frame - Robin and low frame - Robin Step-thru, depending on the rider's height.
(Recommend)
1599
≥65Km
Range (Measured)
48V14.5Ah
Lithium Battery
25Km/h
Top Speed
Bafang Powerful Motor
Max 80 N.m
JOBOBIKE Robin ST

The Robin ST is suitable for commuting, adventure and even snowy terrain. On different types of surfaces, fat bikes will perform brilliantly, whereas bikes with thinner tires will simply collapse. And Robin Step-thru ebike is suitable for everyone because of its low frame and ease to pass the leg and start enjoyable riding!

JOBOBIKE Robin ST JOBOBIKE Robin ST JOBOBIKE Robin ST JOBOBIKE Robin ST JOBOBIKE Robin ST
BETTER BALANCE AND GRIP
BETTER BALANCE AND GRIP
E-bikes with fat tires are ideal for off-road. Thick tires improve the control and balance of the ride, and Robin uses CST 26"X4.0", run-flat tires with wide rims that greatly increase its durability.
A DIFFERENT DESIGN OF STEP-THRU
A DIFFERENT DESIGN OF STEP-THRU
The Step-Thru electric bike frame usually has a very low top tube height of 480 mm, which is an ideal electric bike for women, beginners, people with bad knees and older people. (It is also friendly to women in e-bike skirts).
EXCELLENT SHOCK ABSORPTION
EXCELLENT SHOCK ABSORPTION
The Robin is equipped with a hydraulic RST 80 mm suspension fork with rebound adjustment and lockout function. Depending on the terrain, the rebound setting and lockout function can be adjusted.
DETAILS
696Wh LG Battery
696Wh LG Battery
The Robin has a 48V 14.5Ah battery with BMS battery system that protects you from overcharging and overheating.
Bafang Motor
Bafang Motor
Bafang 250W brushless hub motor with 80 N.m torque for stable performance and provides powerful power.
LCD Display
LCD Display
LCD display for clear presentation of all required data, such as electric quantity, pedaling assistance level, speed, etc. Equipped with a USB port.
Tektro Mechanical Brakes
Tektro Mechanical Brakes
Tektro mechanical disc brakes with shorter braking distances and better braking performance, allowing you to control your speed sensitively.
Shimano 7-speed Freewheel
Shimano 7-speed Freewheel
Shimano 7-speed freewheel for better adaptation to different road conditions, such as sand, forest, mountain and snow.
Front Suspension
Front Suspension
Robin series is equipped with RST adjustable suspension fork, which can reach up to 80mm travel, so that rider can achieve the best riding experience on different terrains.
ISO 9001 TUV RoHS EN15194
  • A-handlebar height 990-1150mm
  • B-total length 1960mm
  • C-wheelbase 1098mm
  • D-wheel size 26"*4
  • E-seat height 870mm-1100mm
  • F-stand height 750 mm
  • G-length seat tube 510mm
  • H-PSI range 5-30 PSI
  • I-Total weight 140kg
  • J-Stand height 481mm
SPECIFICATION
Battery
48V 14.5Ah(696Wh) lithium battery
Frame
6061 Aluminum alloy
Motor
48V 250W Bafang Max.80N.m
Handlebar
Aluminum alloy 720mm
Display
Color LCD with USB port
Saddle
Velo leather comfort saddle
Charger
AC110-240V DC48V2.0A
Kickstand
Single-leg aluminum alloy
Front Light
Bright LED light with 60 LUX
Pedals
Wellgo mountain type
Rear Light
With brake light function
Seatpost
Aluminum alloy Φ31.8×350mm
Pedal Assist
Intelligent 5 levels pedal assist
Fenders
Black PVC fenders
Throttle
Half twist throttle
Tires
CST 26"x 4.0"
Derailleur
Shimano 7-speed
Front Fork
RST hydraulic suspension fork
Controller
48V250W
Crank
Aluminium alloy 42T
Chain
KMC
Range
≥65Km (Measured riding on a full charge, flat road, 80kg rider)
Suspension
RST aluminum hydraulic suspension
Recommended Height
Above 160cm
Brakes
Tektro mechanical disc brakes
Load Capacity
120kg
Brake Levers
Tektro comfort grip levers with integrated bell
N.W.
34.6kg
Brake Rotors
Tektro 180mm front & rear
Total Weight
44kg
Type
All Terrains Electric Fatbike
Feature
Fat Tire & Powerful
Applicable Scene
All Terrain
2-year
warranty
20 days free
test ride
Free shipping
to EU
Assembling and service at
your local service points
What is a fat tire electric mountain bike?

The Fat Tire Electric Mountain Bike is a mountain bike with fat tyres and an electric power assist system. The fat tyres are wider than normal mountain bike tyres and provide better passing and stability, while the electric power assist system helps the rider to climb steep hills or travel long distances more easily.

What wheel size should I choose for my fat-tire electric mountain bike?

Fat tyre electric mountain bikes are usually available with a wheel diameter from 20" to 26". Both sizes provide adequate passing and stability and the choice of size depends largely on individual needs and height and weight.

Why choose fat tire e-bike?

Fat tire electric bikes are ideal for all-terrain like sand, snow, mud, mountain and so on, because of they provide more stability and traction over these types of surfaces.
