JOBOBIKE Lyon

Step-thru Mid Motor City Men's E-bike
JOBOBIKE Lyon is a men's electric city bike with a low frame. Its class grey color is perfect for men who seek the classic taste. Lyon, despite its urban character, will also work excellently in the field. It is equipped with a suspension fork which makes it work well on field and forest roads too.
(Recommend)
1699
≥90Km
Range (Measured)
36V 14Ah LG
Lithium Battery
25Km/h
Top Speed
Bafang Mid Drive Motor
Max 65 N.m
JOBOBIKE Lyon

JOBOBIKE Lyon is built with a step-through frame and hidden battery. With a low frame and classic grey color, it possesses urban style and comfort when they are commuting to work, riding to the grocery, or simply exploring the outdoors.

JOBOBIKE Lyon JOBOBIKE Lyon JOBOBIKE Lyon JOBOBIKE Lyon JOBOBIKE Lyon
STEP THROUGH FRAME
STEP THROUGH FRAME
JOBOBIKE Lyon has a step-through frame design, friendly to seniors. It allows them to easily pass through the frame, and don’t need to worry about the high frame too, it could make you feel relaxed and comfortable during the ride.
BAFANG BRUSHLESS MID-MOTOR
BAFANG BRUSHLESS MID-MOTOR
A 250W brushless central motor with a torque of 65N.m, smaller, lighter, quieter and more efficient than the motor of your old e-bike, will help you in difficult terrain and provide joy and satisfaction from riding.
LG 504WH BULIT-IN LI-ION BATTERY
LG 504WH BULIT-IN LI-ION BATTERY
Equipped with a LG battery, with a BMS system that protects the battery from overheating and overcharging, which will allow you to enjoy a happy and carefree ride.
DETAILS
Full Color LCD Display
Full Color LCD Display
The colorful LCD display shows all the parameters, such as battery level, pedaling assistance level, wattage, speed, distance traveled, etc. Equipped with a USB port.
CST Tires
CST Tires
CST 26" x 2.35" tire, offers excellent puncture protection, and ensures exceptionally good riding performance and grip, which could provide a smooth and comfortable feel.
Tektro Hydraulic Disc Brakes
Tektro Hydraulic Disc Brakes
With Tektro hydraulic disc brake, allowing you to control your speed sensitively with low-damage brakes, you can ride safer.
Pedal Assist
Pedal Assist
It offers a 5-level pedal assist with a torque sensor to ride easily and leisurely. It will automatically enter the assist system when you start, and then you can choose the suitable level for your riding trip.
Shimano 7-speed
Shimano 7-speed
It's equipped with Shimano 7-speed derailleur, allowing you to upshift or downshift, even at high speeds. Choosing a suitable freewheel for different riding conditions can improve riding efficiency.
SR Saddle
SR Saddle
The SR gel saddle will ensure a pleasant and comfortable ride, and reduces uncomfortable friction and chafing.
Rear Rack
Rear Rack
Rear rack with quick release, be able to mount basket and baby seat.
ISO 9001 TUV RoHS EN15194

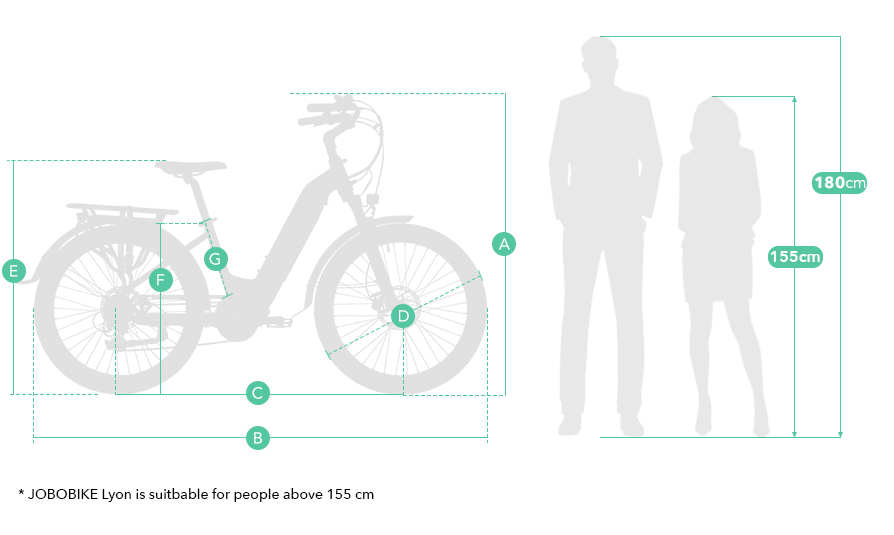

  • A Handlebar height 1030-1110mm
  • B Length 1820mm
  • C Wheel base 1116mm
  • D Wheel size 26"*2.35"
  • E Seat Height 780mm-950mm
  • F Stand Over Height 660mm
  • G Seat tube length 420mm
  • H Frame size 16.5"
SPECIFICATION
Battery
36V 14Ah(504Wh) LG lithium battery
Frame
6061 Aluminum
Motor
250W Bafang M200 mid motor, max 65N.m
Handlebar
SM Aluminum alloy 660mm
Display
Bafang High-Contrast LCD & USB charging port
Saddle
SR A237H moderate leather
Charger
AC110-240V DC36V2.0A
Kickstand
Single-leg aluminum alloy
Front Light
Bright LED light with reflector
Pedals
Wellgo mountain type
Rear Light
Bright LED light
Seatpost
SM Φ31.8*110mm
Pedal Assist
Intelligent 5 level pedal assist with torque sensor
Fenders
Black aluminum plastic fenders
Throttle
/
Tires
CST 26" x 2.35"
Derailleur
Shimano 7-speed
Front Fork
Suntour XCM 100mm travel
Controller
36V250W
Crank
Aluminium alloy 52T
Chain
KMC
Range
≥90Km (Measured riding on a full charge, flat road, 80kg rider)
Suspension
/
Recommended Height
Above 155cm
Brakes
Tektro hydraulic disc brakes
Load Capacity
120kg
Brake Levers
Tektro aluminum alloy comfort grip lever
N.W.
27.4kg
Brake Rotors
Tektro 180mm front & rear
Total Weight
35.6kg
Type
Step-thru Mid Motor City E-bike
Feature
Low Frame & Mid Motor
Applicable Scene
Commuting & Urban
2-year
warranty
20 days free
test ride
Free shipping
to EU
Assembling and service at
your local service points
How about the recommended rider height for JOBOBIKE Lyon?

The recommended rider height for JOBOBIKE Lyon is above 155cm.

What the benefits of mid drive motor?

It is smaller, lighter, quieter and more efficient than the motor of your old e-bike, will help you in difficult terrain and provide joy and satisfaction from riding.

How long will it take to assemble the Lyon?

It will take around 20 minutes to assemble the bike, you can watch JOBOBIKE's instruction manual or video.
